Cabezal panorámico indexado (DDP-64S DDP64S)

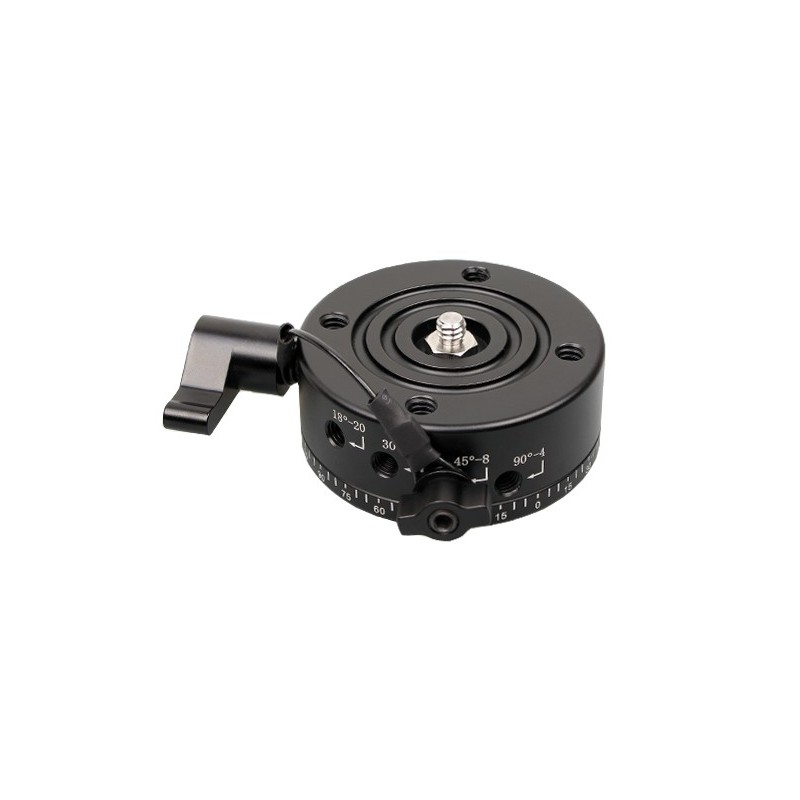

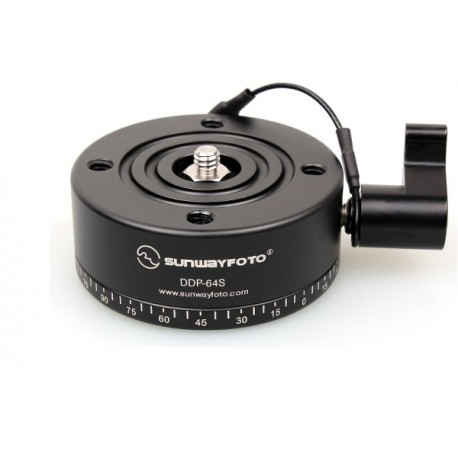

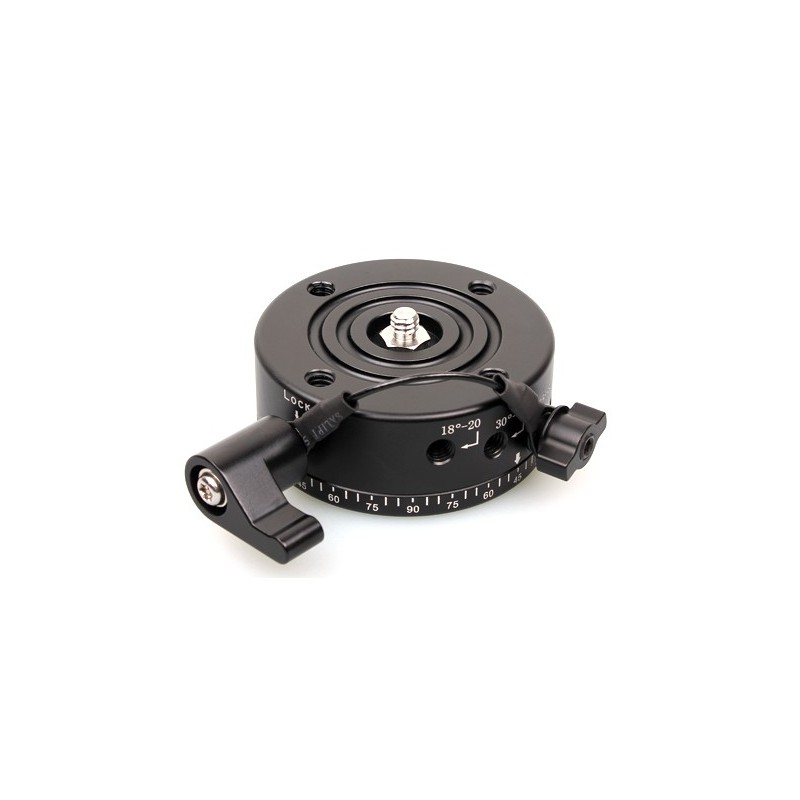

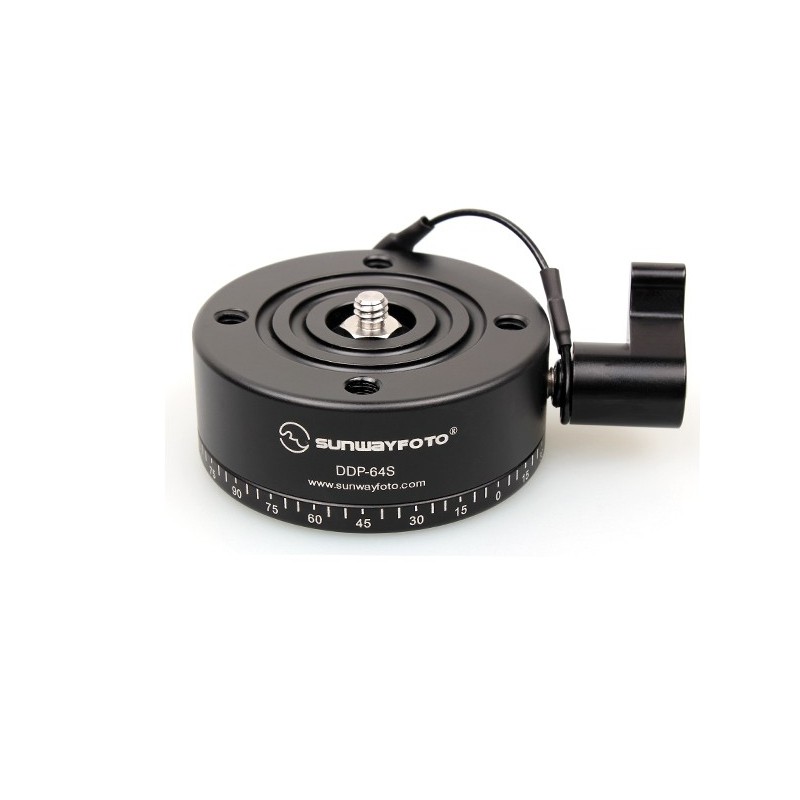

Indexing Rotator DDP-64S.
It will meet the requirement of quickly shooting for panoramic photographers. This Indexing Rotator components is made by high precise machined from imported premium quality aircraft aluminum. We use sophisticated CNC machining equipment through excellent manufacturing process and strict quality  control to cast out this product.It has combined high precision, ease of use,compactness, light weight and durability Suitable for lens ranging from ultra wide angle lenses.


1. Product Features

1. Compact and light weight - only 190 grams.
2. More than 6-8 kg loading supported.
3. Adopt very high quality surface -anodized techniques, solid and durable.
4. Lubricated bearings for smooth rotation.
5. Laser engraved index marks
6. Two Knobs for locking top platform and panning base rotation.
7. Detent interval can be changed easily.
8. Ideal for making HDR(High-Dynamic Range) panorama.
9. when install this Indexing Rotator onto a tripod, you can also use as a normal panning base.
10. Complete set of 4 detent interval options.


4 different degree stop increments (with equivalent number of stops around) include:
18 (20 stops)
30 (12stops)
45 (8 stops)
90 (4 stops)
Stops around =  20, 12, 8, 4.
Degrees = 18, 30, 45, 90.

2. product application
This Indexing Rotator can be used in conjunction with our Discal Clamp, used for PANO-2.


3, Installed the Arca-Swiss standard dovetail on the top or on the bottom.
