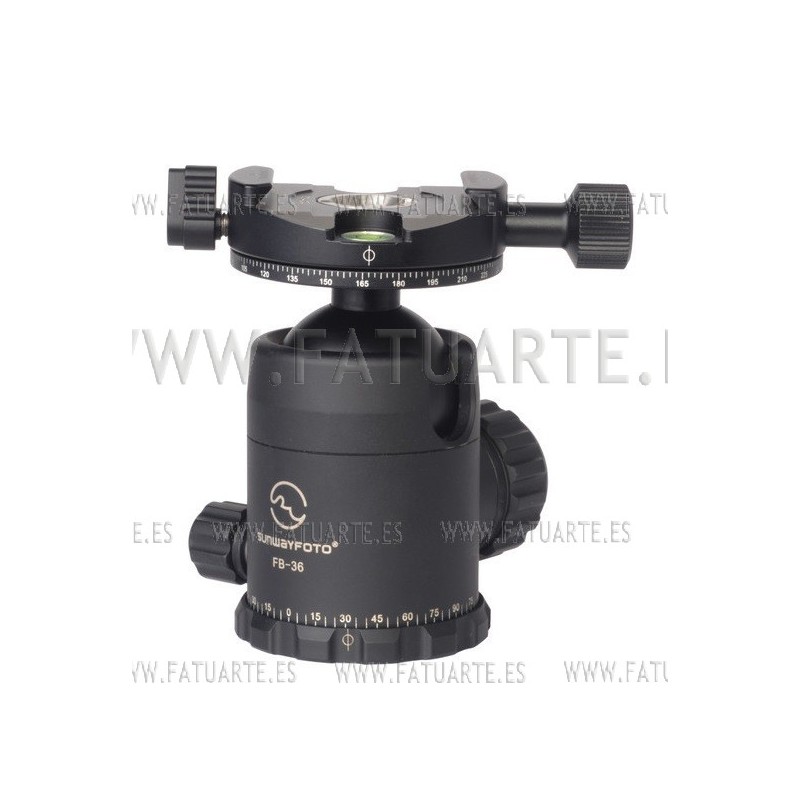

Sunwayfoto (FB-36IIDDHi FB36IIDDHi) Single Notch Ballhead

SUNWAYFOTO FB-36II is an updated high quality ballhead.

SUNWAYFOTO make the FB series ballhead balls from ellipsoidal form into more closer to spherical form.

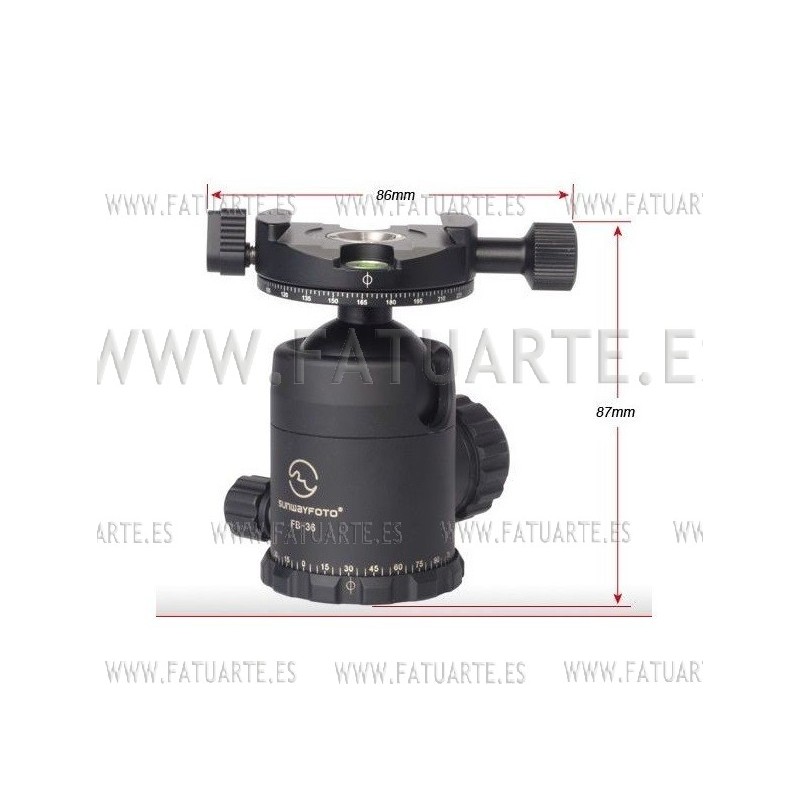

Ball Diameter: 36mm
Panning Base Diameter: 48mm
Height: 82mm
Net. Weight: 300g
Max Load: 18kg
Mounting Thread: UNC3/8"-16
Clamp Type: screw-knob clamp

At present, most ballheads in the market have the Y-axis diameter of the ball about 0.07mm longer than the X-axis . The advantage of this design is to make the resistance increasing while the ball sliding to the side. So that to avoid the risk of making the ball suddenly slide down.

But SUNWAYFOTO only make the ball Y-axis diameter 0.03mm longer than the X-axis. The advantage of this change is that to make the operation more smooth while retaining the previous advantage.

SUNWAYFOTO continue to adopt all metal materials knob, so that make the operation more smoothness, and also enhance the reliability and durability.

Compared with DB series ballhead:
Remove:
1. FB series ballhead cancelled double drop notch, only keep one notch for portrait;
2. FB series ballhead cancelled the main lock knob scale ring;
3. FB series ballhead are lighter than DB series' about 65g;
4. FB series ballhead's pan base diameter reduced 7mm;
5. FB series ballhead's height reduced 2mm;

Add:
1. FB series ballhead ball's locking strength raised 20%;
2. FB series ballhead pan base's locking strength raise 50%;
3. FB series ballhead add two spirit level mounting sets, users can mount the removable spirit level to 3 sides of clamp;

SUNWAYFOTO  FB-36III Ballhead work with most Traveler Tripods for outdoor photography
